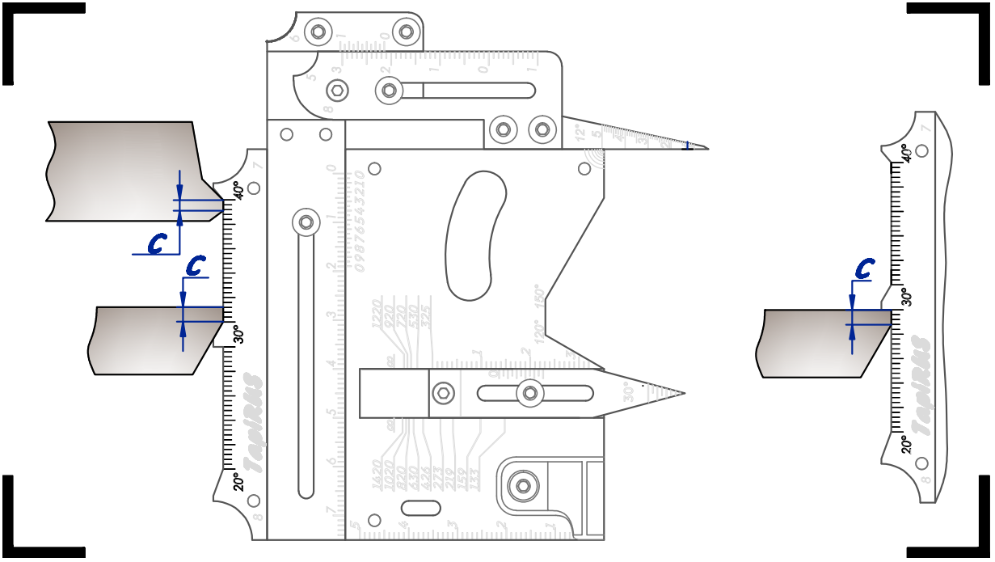

Measurement of the root faces
Weld preparation - non-beveled portion of the edge to be welded
positioning and measurement taking
- Attach a gauge corresponding to the type of measured groove at the edge of the face prepared for welding
- Take the value of parameter c on either of the scales F or G which shows linear measurements
